IP67 waterproof 28 Dbi GSM GPS WIFI Combo Antenna For Laptop TOP-GGW01

Brand Name : TOP

Model Number : TOP-GGW01

Certification : CE,ROHS

Place of Origin : China

MOQ : 1 pcs

Price : 8.5$ ~9.5$/pcs

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 100000pcs/month

Delivery Time : 5-7 working days after getting the payment

Packaging Details : 1pcs/box, 100 box/carton

Product Name : GPS GSM combination Antenna

size : D80*14mm

Mounting Method : Screw

gain : 28 dbi

cable : RG174

color : black

Contact Now

IP67 waterproof 28 Dbi GSM GPS WIFI Combo Antenna For Laptop TOP-GGW01

2 type cable come out:
Cable come out from the side
Cable come out from the bottom

Features

Compatible with all GPS devices/systems
Built-in GPS signal amplifier to enhance and improve GPS signal reception
Fixed screw mount
Connector type options: straight or right angle BNC, MCX,MMCX,SMA,SMB-F,SMB-M,SMC,FAKRA,HRS GT5 etc. (Default: straight SMA type)
Cable length options: maximal 5 meters (Default: 5 meters)

Frequencies
AMPS (824-894 MHz)
GSM (900 MHz)
GPS (1575.42 MHz)
DCS (1800 MHz)
PCS (1900 MHz)
3G (UMTS 2.1 GHz)
WIFI / BLUETOOTH (2.4 GHz)

LNA/Filter
- LNA Gain (without cable): 28dB typical
- Noise Figure 1.5dB
- Filter Out Band Attenuation: (f0=1575.42 MHZ)
- 7dB in f0+/-20MHZ
- 20dB in f0+/-50MHZ
- 30dB in f0+/-100MHZ
- V.S.W.R < 2.0
- DC Voltage 2.2V to 5.0V
- DC Current < 15mA
Mechanical
- Weight: <110gram
- Size: D80x 14 mm
- Cable: RG174 with 3 meter or other
- Connector: your specification
- Mounting: screw (1 cm hole)
- Housing color: Black
Environmental
- Working Temp: -40^oC~+85^oC
- Storage Temp: -45^oC~+100^oC
- Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis
- Humidity: 95%~100% RH
- Weatherproof: 100% Waterproof

Specifications

Item			Specifications
GPS Antenna	Dielectric Antenna	Center Frequency	1575.42±1MHz
		Band Width	CF±5MHz
		Polarization	RHCP
		Gain	2dBic(Zenith)
		V.S.W.R	＜1.5
		Impendance	50Ω
		Axial Ratio	3dB(max)
	LNA	Gain	28±2dB
		Noise Figure	＜1.5
		Ex-band Attenuation	12dB@CF+50MHz/16dB@CF-50MHz
		V.S.W.R	＜2.0
		Supply Voltage	2.2~5V DC
		Current Consumption	5~15mA
GSM Antenna		Frequency Range	824~960MHz/1710~2170MHz
		V.S.W.R	＜2.0
		Polarization	Linear
		Gain	2.0dBi
		Impendance	50Ω
WIFI Antenna		Frequency Range	2400~2483.5MHz
		Band Width	83.5MHz
		Polarization	Linear
		Gain	3dBi
		V.S.W.R	＜2.0
		Impendance	50Ω
Mechanical		Cable	RG174
		Connector	SMA/MCX/FAKRA or others
		Material	ABS
		Mounting Method	Screw
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP65~IP67 (exclude cable outlet)
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

Application:
• Military
• Car navigation
• AVL/Fleet Management
• Vehicle tracking
• Weather balloon

Click here to find the data sheet:

TOP-GGW01.pdf

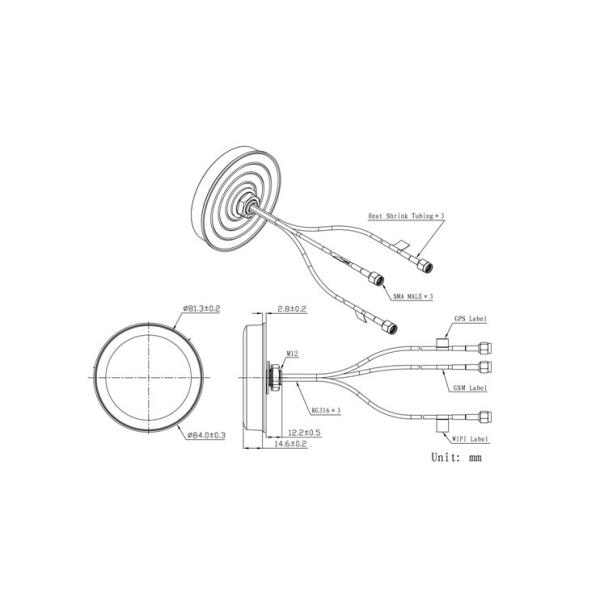

Drawing:

IP67 waterproof 28 Dbi GSM GPS WIFI Combo Antenna For Laptop TOP-GGW01

Our Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price

FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .

2. How about the defective rate ?
Answer: Less than 1%.

3. Where can customers get the Product Specification and other datasheets?
